Openlayers记录(二)热力图heatmap。

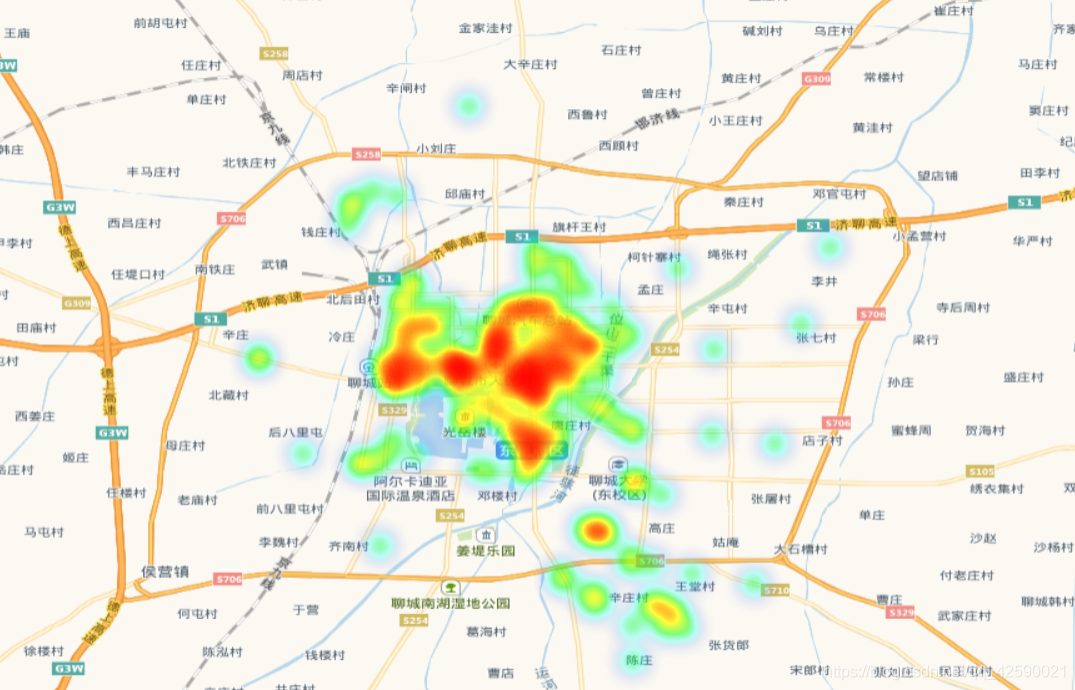

1先来效果
可以调节热力图的半径大小跟模糊度
2代码实现
javascript
//热力图
function heatmap() {
layui.use('slider', function() {
var slider = layui.slider;
//渲染
slider.render({
elem: '#radius' //绑定元素
});
});
var count = 400;
var lon = new Array(count);
var coordinates = new Array(count);
var lat = new Array(count);
var dataSource = new Array(count);
$.ajax({
url: "这里放url路径",
type: 'get',
data: {
"参数"
},
dataType: 'json',
async: false,
success: function(results) {
// console.log(results);
// alert(results);
dataSource = results;
for (var i = 0; i < results.length; i++) {
lat[i] = results[i][4];
lon[i] = results[i][5];
}
}
});
var feas = [],
heatData;
for (var i = 0, len = dataSource.length; i < len; i++) {
var provinceInfo = dataSource[i];
//支持传入 GeoJSON 规范数据类型:
var fea = {
"type": "Feature",
"properties": {},
"geometry": {
"type": "Point",
"coordinates": [lat[i], lon[i]]
}
};
feas.push(fea);
}
heatData = {
"type": "FeatureCollection",
"features": feas
};
var blur = document.getElementById('blur');
var radius = document.getElementById('radius');
//矢量图层 获取gejson数据
var vectorSource = new ol.source.Vector({
features: (new ol.format.GeoJSON()).readFeatures(heatData, {
dataProjection: 'EPSG:4326',
featureProjection: 'EPSG:4326'
})
});
// Heatmap热力图
var vector = new ol.layer.Heatmap({
source: vectorSource,
blur: parseInt(blur.value, 10),
radius: parseInt(radius.value, 10),
});
//分别为另个参数设置控件(input)添加事件监听,动态设置热点图的参数
radius.addEventListener('input', function() {
vector.setRadius(parseInt(radius.value, 10)); //设置热点图层的热点半径
});
blur.addEventListener('input', function() {
vector.setBlur(parseInt(blur.value, 10)); //设置热点图层的模糊尺寸
});
map.addLayer(vector);
$('#removeHeatMap').on('click', function() {
map.removeLayer(vector);
});
}
3总结
返回的数据格式我用的是json,从数据库中读取坐标,返回到前台。
