Openlayers记录(四)同一图层设置不同的点符号(大小、颜色等),弹窗显示。
1.实现效果

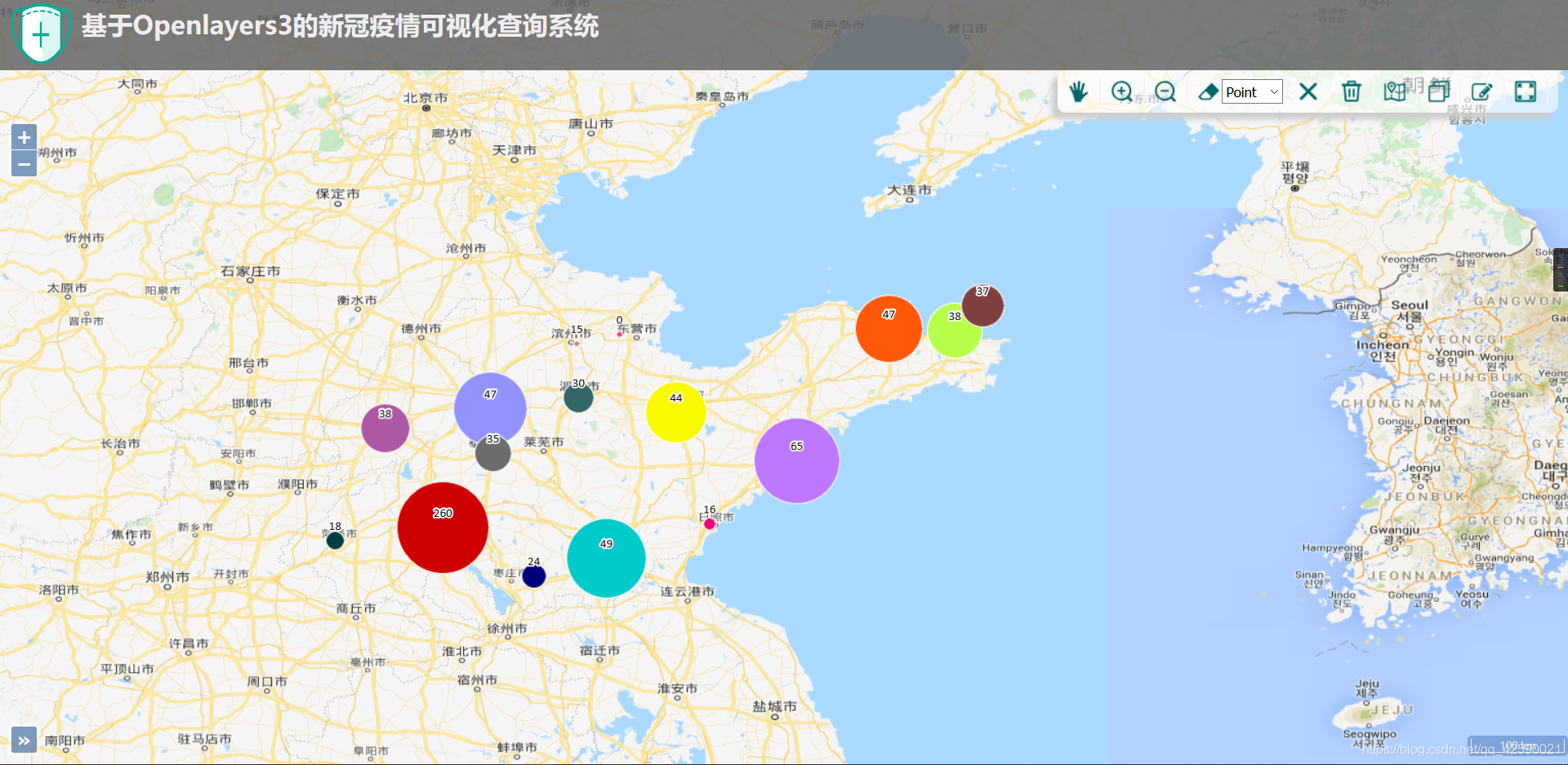

1.1点符号设置

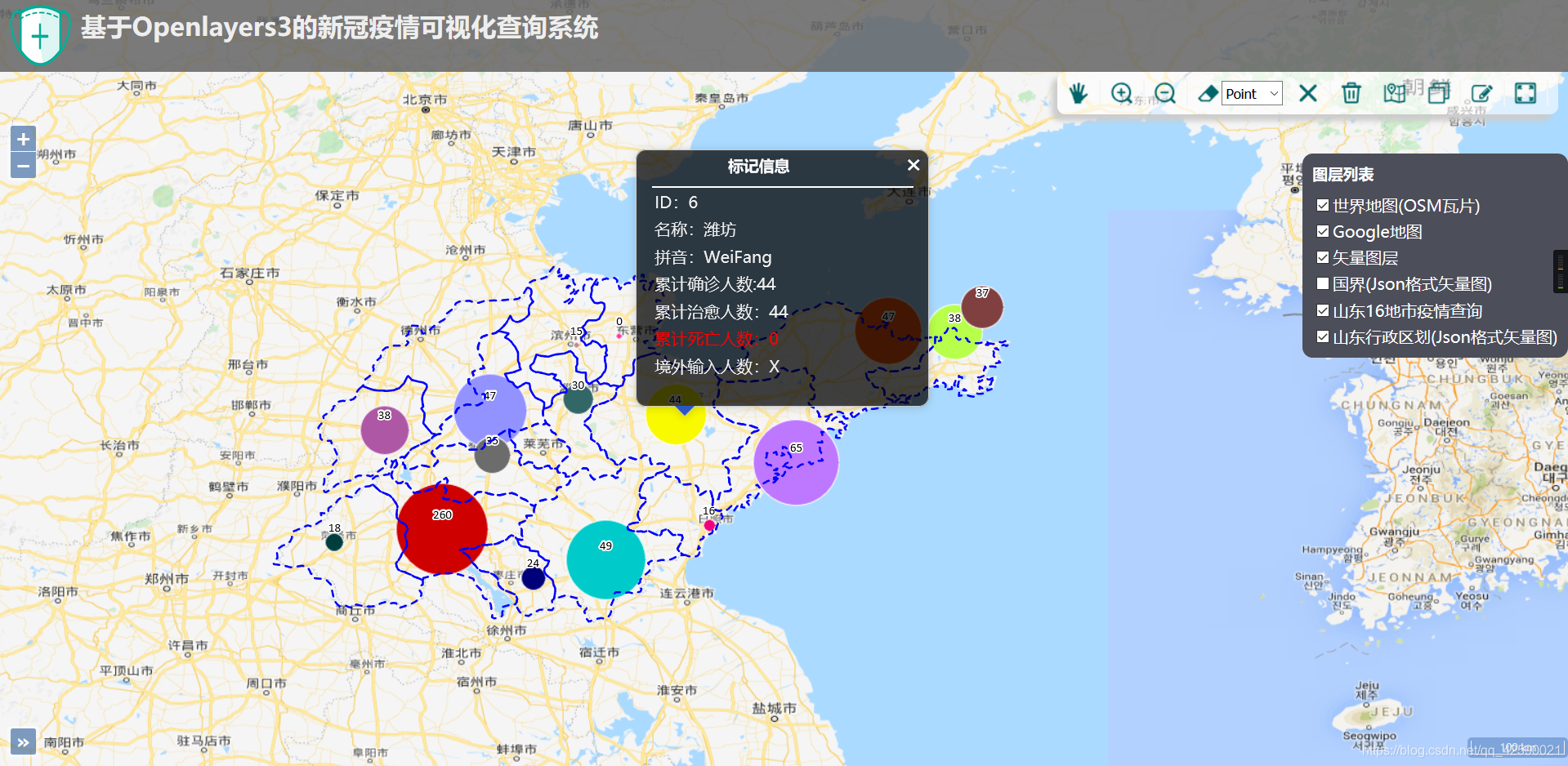

1.2弹窗效果
2.实现的符号设置代码
javascript
/*****************标记部分****************************/
var features1 = [];
for (var i = 0; i < dataSource.items.length; i++) {
var coordinate = [lat[i], lon[i]];
coordinate.map(parseFloat);
// console.log("转换后经纬度:" + coordinate);
var attr = {
Code:code[i],
Name: Name[i],
city: city[i],
lat: lat[i],
lon: lon[i],
confirmed:confirmed[i],
cure: cure[i],
death: death[i],
foreign:foreign[i]
};
//features1[i] = new ol.Feature({geometry: new ol.geom.Point(coordinate),
// attribute: attr,
// });
features1.push( new ol.Feature({geometry: new ol.geom.Point(coordinate),
attribute: attr,
name:dataSource.items[i].id
}))
}
var colors = ['#FF359A', '#CE0000', '#BE77FF', '#00CACA','#9393FF', '#FF5809', '#F9F900', '#B7FF4A','#AE57A4', '#804040', '#6C6C6C', '#336666','#000079', '#003E3E', '#F00078', '#C48888'];
var iconWidth=[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,1];
var iconWidth1=iconWidth.reverse();
console.log();
var iconStyles = [];
for(var i=0;i<dataSource.items.length;i++){
iconStyles.push(new ol.style.Style({
image: new ol.style.Circle({
radius: iconWidth[i]*3,
stroke: new ol.style.Stroke({
color: '#fff',
}),
fill: new ol.style.Fill({
color: colors[i],
})
})
}))
}
var labelStyle = new ol.style.Style({
text: new ol.style.Text({
font: '12px Calibri,sans-serif',
overflow: true,
fill: new ol.style.Fill({
color: '#000'
}),
stroke: new ol.style.Stroke({
color: '#fff',
width: 3
}),
textBaseline: 'bottom',
offsetY: -8
})
});
var source1 = new ol.source.Vector({
features: features1,
});
var markerVectorLayer = new ol.layer.Vector({
name:'山东16地市疫情查询',
source: source1,
style: function(feature) {
var name = feature.get('name');
var iconStyle = iconStyles[parseInt(name)%colors.length];
labelStyle.getText().setText(feature.values_.attribute.confirmed);
return [iconStyle, labelStyle];
}
});
map.addLayer(markerVectorLayer);
